Apollo-M MAX USB3.0 Mono Camera (IMX432)

(4 customer reviews)

$599.00$664.00

Clear
SKU: Apollo-M MAX Category:

Focus on Solar imaging!

Apollo series is the world’s first camera line designed specifically for solar photography, named after Apollo.

The Apollo series features Sony sensors with global shutters and a focus on monochrome sensors.

Now, we lanuch 4 models of Apollo cameras:

Apollo-M MAX (IMX432), 1.1 inch sensor, monochrome.

Apollo-M MINI (IMX429), 2/3 inch sensor, monochrome.

Apollo-M (IMX174) , 1/1.2 inch sensor, monochrome.

Apollo-C (IMX174) , 1/1.2 inch sensor, color.

* Notice: Solar camera requires energy rejection and light reducer, such like Baader film or Herschel wedge. Please DO NOT use it directly imaging the Sun.

Product Description

Apollo-M MAX is a solar camera developed by Player One Astronomy, which adopts the Sony IMX432 1.1” format monochrome sensor. The 9um pixel size accommodates a well depth of 100ke with a total of 1.7MP  (the resolution is 1608*1104), and the diagonal is 17.5mm.

Pregius Technology

Apollo-M MAX (IMX432) is based on Pregius 3rd Generation. But IMX432 is quite different. According to the introduction of technical documents, pixel size of 3rd Gen usually is 4.5um, and full well is 25Ke. But this sensor has 9um pixel, and of course the full well up to 4x (100Ke).

Format

Apollo-M MAX (IMX432) has 1.1″ format, it is pretty big, almost twice of IMX174 chip.



Pixel size

9um pixel size is 1.5 times bigger than IMX174 camera, which means it can works at longer focal ratio, such as SCT + Daystar filter(with 4.2X) .

Full Well

100Ke full well, is 3 times bigger than IMX174. This feature will bring some new possibility in imaging. What we can imagine is HDR the Sun and prominence, or maybe the bright and dark side of the Moon.

HCG and Noise

HCG mode will automatic open when Gain ≥145, readout noise will drop to 4.6e. And dynamic range will rise to 12 drops again.

At 380 gain, readout noise of Apollo-M MAX (IMX432) camera is 2.6e, it is lower than IMX174. And full well will still bigger than IMX174.



Highlights

New Solar Ha imaging and post-processing tutorial (Demonstrate with Apollo-M MAX)

https://player-one-astronomy.com/solar-imaging-and-processing-tutorial-demonstrate-with-apollo-m-max/

No banding

Row noise problem is a big trouble in solar imaging. When we use IMX174 or IMX178 cameras, bandings occurs sometimes. Although we can make it slight in post-processing, but it still does negative affect on the details.

The biggest surprise in testing Apollo-M  MAX is, we found that images of IMX432 are so smooth, no annoying horizontal banding. So that, we can focus on capture details in any focal ratio, in any way ( full disk mosaic or ROI ) , never need to worry about banding issue in post-processing.



With global shutter, Apollo-M MAX are very suitable for sun and space station imaging.

“The official recommended camera of  The Charlie Bates Solar Astronomy Project

Recommended accessories:

ACS (Active Cooling System)

ACS is a external air-cooled system, designed for solar and big format planetary cameras which already has PCS (Passive Cooling System). ACS can provide much better temperature control. When camera has PCS + ACS, temperature is only 7℃ higher than ambient, camera body is a little warm but won’t hot! ACS is not only can be used in daylight for solar imaging, it also could be used in night for DSO lucky imaging.

https://player-one-astronomy.com/product/active-cooling-system-acs-for-uncooled-cameras/

User reference images:

The Sun in White Light

For better contrast, Player One Photosphere 10nm filter will be a good choice.

Apollo-M MAX with SW150APO, photo by Simon

Apollo-M MAX with SW150APO, photo by Simon

Demonstrate with ES127APO:

The Chromosphere in H-Alpha

Introduce new 1.25″ ERF filter for Quark Chromosphere (Ha verstion) , intend to reject energy and extend life time of your Quark.

Apollo-M MAX with SW150APO+QUARK Chromosphere, photo by Simon

Apollo-M MAX with SW150APO+QUARK Chromosphere, photo by Simon

Apollo-M MAX with SW150APO+QUARK Chromosphere, photo by Simon

Apollo-M MAX with SW150APO+QUARK Chromosphere, photo by Simon

Apollo-M MAX QUARK Chromosphere, photo by Miguel Claro

Demonstrate with 80APO + Quark Chromosphere:

Demonstrate with ES127APO + Quark Chromosphere:





The Preminence in H-Alpha

The Sun in CaK

Lunt 152 + Calcium K module + Apollo-M MAX, Photo by Stephen W. Ramsden

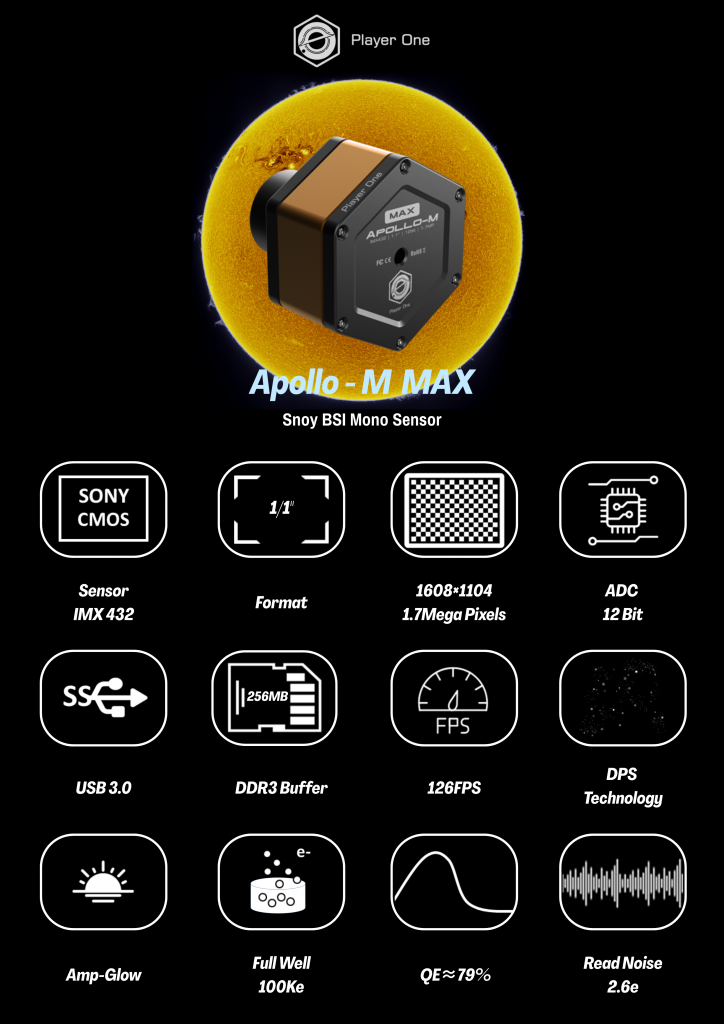

Features:

The naming of Player One Astronomy cameras is unique. Solar camera line, named after Apollo, the god of the sun. The suffix of the name describes the camera’s biggest feature.

Drivers and softwares download: http://player-one-astronomy.com/service/software/

Manuals download: http://player-one-astronomy.com/service/manuals/

Cutting-edge Design

The planetary cameras developed by Player One Astronomy uses a scientific and technological regular hexagon to construct the main body line, supplemented by round chamfers to achieve both rigidity and flexibility. The positive orange, which is imply solar, is matched with the low-key and steady black, and the super-fine frosting process on the entire surface makes the camera look luxurious and cool, highlighting the style of high-end players, can’t take my eyes off 😀

2nd Gen – Sensor Tilt Plate

When taking solar photograph with prominence telescope, the Newton ring is annoying. Smoother solar image without Newton ring could be taken by adjusting the focal plate. Get a much smaller field curvature of the telescope.

The built-in high-density sponge shading pad can block the light from the side slits without any side leakage.



Passive Cooling System

Solar cameras working in daylight, temperature could be much higher than night. Heat of global shutter sensors will be a problem, especially some big format like IMX432. Player One add one new feature called Passive Cooling System to conduct the heat from the sensor out.



256M DDR3 Cache

Player One Astronomy cameras are the first one who adpots the DDR3 cache in all planetary cameras in the world! It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readnoise.

With the DDR3 cache, the camera does not have high demands on computing needs any longer, it will still has excellent performance even if it is connected to a USB 2.0 port.

DPS technology

The planetary cameras from Player One Astronomy have DPS (Dead Pixel Suppression) technology. The DPS is anaylse many dark frames to find out thoes fixed abnormal pixel and record the map in camera memory. In imaging, each exposure frames, thoes position of dead pixels will be given a median value according to the active pixels around that abnormal pixel.



Overvoltage and overcurrent protection mechanism

Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.

Data Port

When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 109FPS in 12bit (RAW16) and 126FPS 10bit(RAW8) mode. When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.

Use the ST4 guide cable to connect the camera and the AUTO GUIDE port of the equatorial mount to do guiding.

Performance





Readout Noise

Regarding readout noise, we solemnly promise that all values are obtained from actual tests.  And for users, you could use Sharpcap 4 for testing. SC4 has a function called Sensor Analysis, provide a very simple way to test readout noise.

We wrote a tutorial on our website: https://player-one-astronomy.com/service/manuals/

After many rigorous readout noise tests, this camera can reach a low readout noise of 2.6e at a gain of 380.

If you are interested in readout noise testing, you may try it yourself, which is very simple.

QE Curve

HCG  Mode

The Apollo-M MAX camera has a unique HCG mode, which will automatically turn on when the camera gain setting is >145. The HCG mode can greatly reduce the readout noise and retain the same high dynamic range as the low gain.

Mechanical Drawing

Sensor

SONY IMX432 1.1" CMOS (mono)

Diagonal

17.5mm

Total Pixels

1.7 Mega Pixels

Max Resolution

1608×1104

Pixel Size

9μm

Chip Size

14.5mm×9.9mm

Frame Rate

126FPS(12bit)

Shutter

Global shutter

Exposure Range

32μs-2000s

Readout Noise

22.9e~2.6e

QE Peak

≈79%

Full Well

100k e

ADC

12 bit

Data Port

USB3.0/USB2.0

Adapter

1.25″ / M42X0.75

Back Focal Length

12.5mm

Protective Window

D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating

Diameter

66mm

Weight

160g

Resolution and FPS

Under USB3.0 mode
Resolution 12bit ADC
1608×1104 126FPS
More resolution options could be setup in capture softewares!
